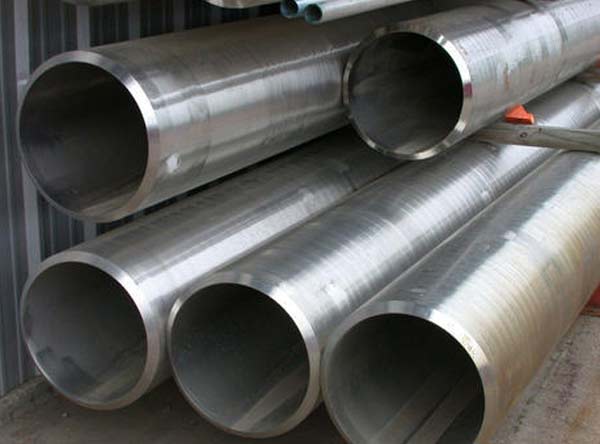

Stainless Steel Alloy 410 Seamless & Welded Pipe

Stainless Steel 410 Seamless Welded Pipes And tubes | SS 410 Seamless Pipes | SS 410 Seamless Welded Pipes And tubes Manufacturer | SS 410 Welded Pipes And tubes Exporter

Grade 410 stainless steels are general-purpose martensitic stainless steels containing 11.5% chromium, which provide good corrosion resistance properties. However, the corrosion resistance of grade 410 steels can be further enhanced by a series of processes such as hardening, tempering and polishing. Quenching and tempering can harden grade 410 steels. They are generally used for applications involving mild corrosion, heat resistance and high strength.

Alloy 410 stainless steel is resistant to atmospheric conditions, water and some chemicals. It can be used in environments containing weak or diluted acetic acid, naptha, nitric acid and sulfuric acid. The alloy is also resistant to acids contained in foods. 410 stainless steel can also be used in slightly chlorinated and desaereted water. It performs well in oil and gas applications where desaereted and low hydrogen sulfide exist. However, the alloy is prone to chloride attack, particularly in oxidizing conditions.

Alloy 410 stainless steel is the general purpose 12% chromium martensitic stainless steel that can be heat treated to obtain a wide range of mechanical properties. 410 stainless steel possesses high strength and hardness coupled with good corrosion resistance. Alloy 410 stainless steel is ductile and can be formed. It is magnetic in all conditions.

Applications

Aerospace – piston engine manifolds
Chemical Processing
Expansion Joints
Food Processing – equipment and storage
Petroleum Refining – polythionic acid service
Waste Treatment – thermal oxidizers

Benefits

Higher creep stress and rupture properties when compared with 304
Ideal for high temperature service
Overcomes sensitization and intergranular corrosion concerns
Can be used in elevated temperature applications for ASME Boiler and Pressure Vessel Code applications
Excellent mechanical properties

Chemical Composition

Grade		C	Mn	Si	P	S	Cr	Ni
410	min. max.	- 0.15	- 1	- 1	- 0.04	- 0.03	11.5 13.5	0.75

Physical Properties

Grade	Density (kg/m³)	Elastic Modulus (GPa)	Mean Coefficient of Thermal Expansion (μm/m/°C)			Thermal Conductivity (W/m.K)		Specific Heat 0-100 °C (J/kg.K)	Electrical Resistivity (nΩ.m)
Grade	Density (kg/m³)	Elastic Modulus (GPa)	0-100 °C	0-315 °C	0-538 °C	at 100 °C	at 500 °C	Specific Heat 0-100 °C (J/kg.K)	Electrical Resistivity (nΩ.m)
410	7800	200	9.9	11	11.5	24.9	28.7	460	570

Calico Metal Alloys LLP exports their products to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
