Calico Metal Alloys LLP is one of the leading Stockist, Manufacturers, Suppliers and Exporters of top-notch Duplex & Super Duplex Steel, Duplex 2205, UNS S31803, UNS S32205, UNS S32750, UNS S32760, Duplex 2202, Duplex 2304 pipe, Tube, sheet, plates, Coil, Shim Sheet in Dubai at low price. Duplex 2205 Seamless Pipes are crafted from alloys that exhibit a combination of austenitic and ferritic properties. This unique composition provides these pipes with exceptional resistance to corrosion and excellent tensile strength. The 2205 Seamless Welded Pipes comprise approximately 22 percent chromium, 3 percent molybdenum, and 5 to 6 percent nickel. Developed specifically to address common corrosion issues faced by the 300 series stainless steels, Duplex 2205 Pipe is a nitrogen-enhanced duplex stainless steel.

The term "Duplex" refers to a group of stainless steels that possess neither purely austenitic characteristics, like 304 stainless steel, nor exclusively ferritic attributes, like 430 stainless steel. The structure of UNS S31803 duplex steel Pipe consists of pools of austenite surrounded by a continuous ferrite phase. In the annealed state, 2205 typically contains around 40-50% ferrite. Known as the go-to grade, UNS S31803 Pipe is the most widely used grade within the duplex family of stainless steels.

Duplex S32205 Seamless Welded Pipes can endure temperatures up to 572 degrees Fahrenheit. However, subjecting the pipes to temperatures exceeding this limit may result in their embrittlement. The chemical composition of these pipes imparts a high resistance to corrosion pitting and corrosion cracking, particularly at temperatures ranging from 302 degrees Fahrenheit. Additionally, the presence of a certain amount of ferrite in this alloy enhances the performance of these pipes, enabling their utilization in challenging environments. These pipes are particularly beneficial in areas prone to chloride-related stress cracking, as they exhibit excellent performance under such conditions.

Corrosion Resistance

Duplex Pipe offers a cost-effective solution for various applications where the susceptibility of 300 series stainless steels to chloride stress corrosion cracking is a concern. Chloride stress corrosion cracking occurs when stainless steels are exposed to tensile stress while in contact with chloride-containing solutions. It's worth noting that higher temperatures further increase the susceptibility of stainless steels to this type of corrosion.

The presence of chromium, molybdenum, and nitrogen in Duplex Steel 2205 imparts excellent resistance to chloride pitting and crevice corrosion. This resistance is particularly crucial for environments such as marine settings, brackish water conditions, bleaching operations, closed-loop water systems, and certain food processing applications. With its elevated levels of chromium, molybdenum, and nitrogen, Duplex Steel 2205 demonstrates superior corrosion resistance compared to common stainless steels like 316L and 317L in most environments.

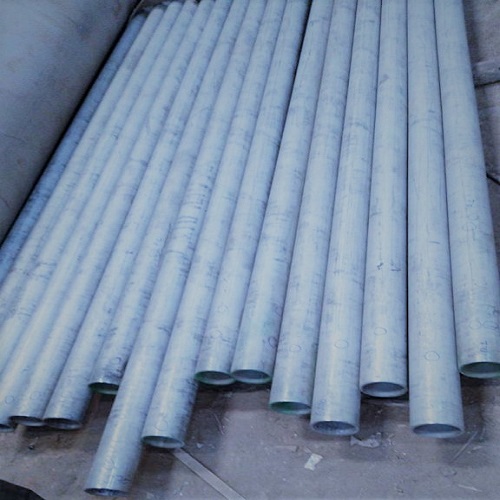

Duplex Steel 2205 Seamless & Welded Pipe

Duplex Steel 2205 Pipe Manufacturer, Alloy 2205 Seamless Pipe Supplier, UNS S32205 Pipes Trader, Duplex 2205 Tubes, Duplex UNS S31803 Pipes, UNS S32205 Pipes dealer, Duplex S32205 Pipe, Duplex S31803 Welded Pipes, 2205 Duplex Steel Pipe Manufacturer in India.

Characteristics

High resistance to chloride stress corrosion cracking
Resistance to chloride pitting and crevice corrosion
Good general corrosion resistance
Good sulfide stress corrosion resistance
High Strength
Good weldability and workability

Applications

Chemical process vessels, piping and heat exchangers
Pulp mill digesters, bleach washers, chip pre-steaming vessels
Food processing equipment
Oil field piping and heat exchangers
Flue gas desulfurization equipment

Also see

2205 duplex stainless steel pipe Specification

Specification	Details
ASTM Specification	ASTM A790, ASME SA790
Manufacturing Type	Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Thickness Range	SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Standard	SUS, JIS, AISI, ASTM, GB, DIN, EN
Additional Services	Destructive and Non Destructive testing, Threading, Ultrasonic Testing, Beveling, Cutting, Draw & Expansion as per required Size & Length
Pipe End Type	Plain End, Beveled End, Treaded 2205 Stainless Steel Pipe
Marking Details	Manufacturer’s Name or Custom Logo - on request, Heat Number, Method of Manufacturing (Seamless / Welded), Material Grade, Schedule or Wall Thickness, Specification, Nominal Size
Inspection & Testing	Destructive and Non-Destructive Testing
Surface Finish	Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Gauge (Swg & Bwg)	10, 12, 14, 16, 18, 20 Swg.
Temperature Range	-50 to 300°C (Depends on material grade)
Pressure Rating	Up to 6000 PSI (Depends on size and schedule)
Manufacturing Process	Hot finished, cold finished, heat treatment
Test Certificate Provisions	Manufacturer Test Certificate, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC), Laboratory Test Certificate from Govt. Approved Lab, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, etc.
Packaging	Bundled, Wooden Boxes, Plastic Bags, or as per client's requirements
Applications	Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry

Types of Duplex 2205 Pipe available :

2205 Stainless Steel erw pipe

DSS 2205 welded pipe

ASTM A790 Duplex 2205 custom pipe

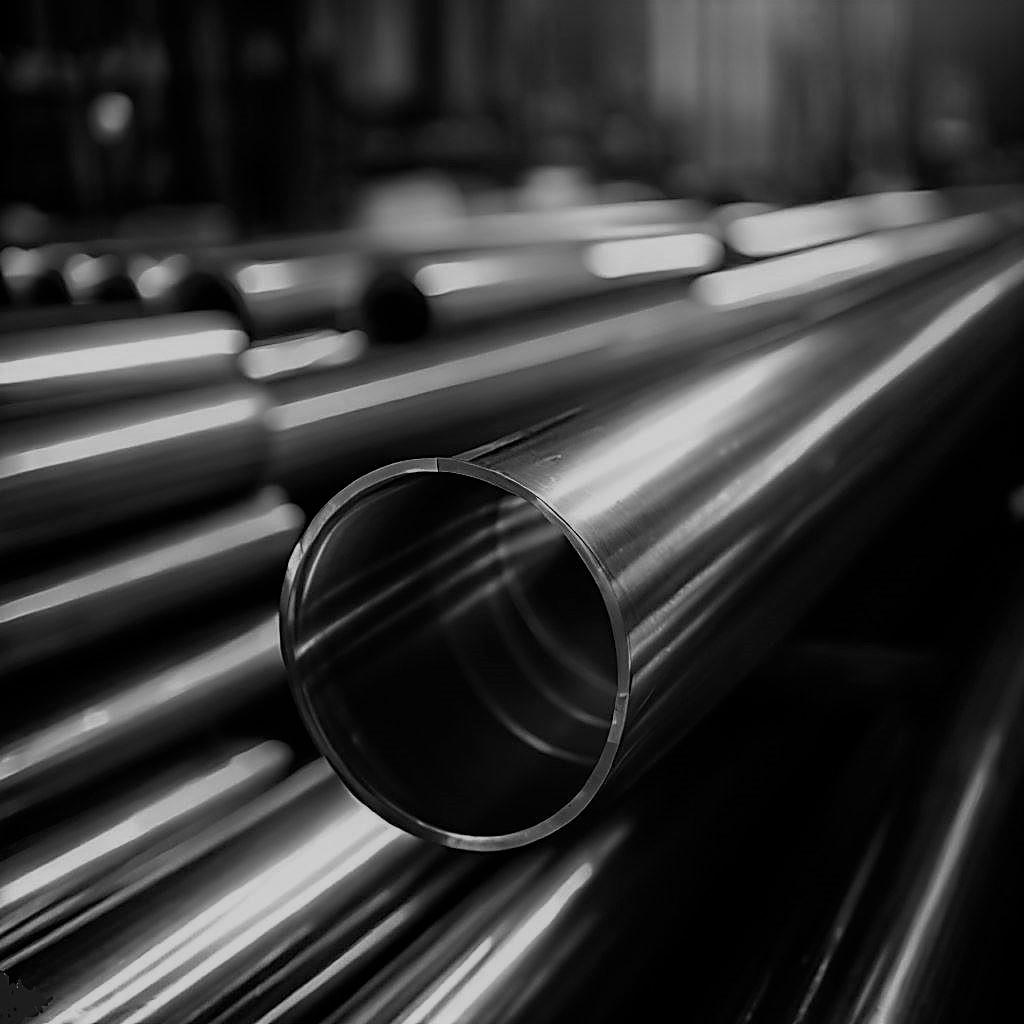

Alloy 2205 seamless pipe

ASTM A790 Duplex Steel Square Pipe

UNS S32205 cold rolled pipe

Duplex 2205 cold drawn pipe

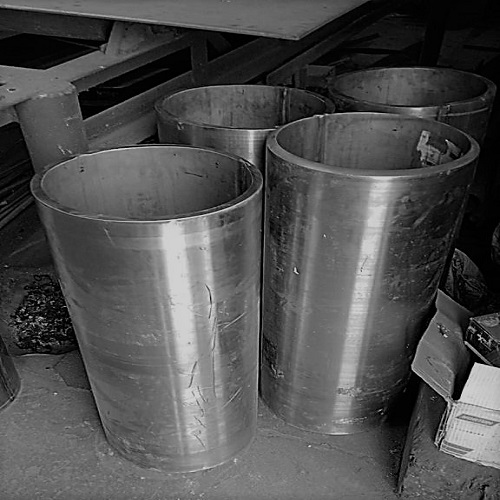

Din 1.4462 large diameter pipe

UNS S32205 electropolished pipe

2205 thick wall pipe

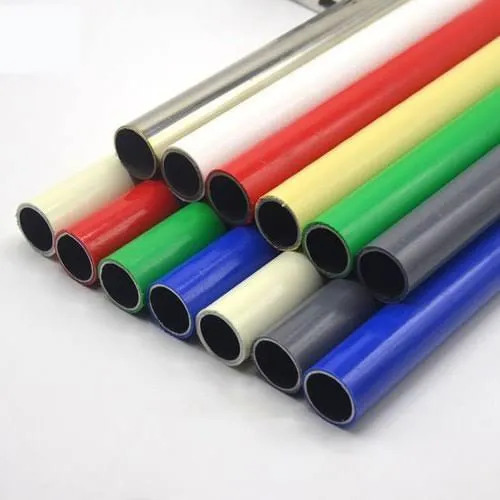

Duplex steel colour coated pipe

ASME SA790 Duplex 2205 hot rolled pipe

Chemical Composition

Grade

2205 (S31803)

Min

Max

0.030

2.00

1.00

0.030

0.020

21.0

23.0

2.5

3.5

4.5

6.5

0.08

0.20

2205 (S32205)

Min

Max

0.030

2.00

1.00

0.030

0.020

22.0

23.0

3.0

3.5

4.5

6.5

0.14

0.20

Mechanical Properties

Grade	Tensile Str (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elongation (% in 50mm) min	Hardness
				Rockwell C (HR C)	Brinell (HB)
2205	621	448	25	31 max	293 max

ASTM A790 2205 Duplex Stainless Pipe Sizes

Pipe Outer Diameter in mm	Pipe Wall Thickness in mm	inches	Schedule	Kg/m
13.72	2.24	1/4	40S	0.64
13.72	3.02	1/4	80S	0.81
17.15	1.65	3/8	10S	0.64
13.72	1.65	1/4	10S	0.50
17.15	2.31	3/8	40S	0.86
21.34	2.11	1/2	10S	1.02
21.34	2.77	1/2	40S	1.29
17.15	3.20	3/8	80S	1.12
21.34	3.73	1/2	80S	1.65
26.67	2.11	3/4	10S	1.30
26.67	3.91	3/4	80S	2.23
33.40	2.77	1	10S	2.13
26.67	2.87	3/4	40S	1.71
33.40	3.38	1	40S	2.54
33.40	4.55	1	80S	3.29
33.40	6.35²⁾	1	160	4.30
42.16	2.77	1¼	10S	2.73
42.16	3.56	1¼	40S	3.44
42.16	4.85	1¼	80S	4.53
42.16	6.35²⁾	1¼	160	5.69
48.26	2.77	1½	10S	3.16
48.26	3.68	1½	40S	4.11
48.26	5.08	1½	80S	5.49
60.33	2.77	2	10S	3.99
60.33	3.91	2	40S	5.52
60.33	5.54	2	80S	7.60
60.33	8.74²⁾	2	160	11.29
73.03	3.05	2½	10S	5.35
73.03	5.16	2½	40S	8.77
73.03	7.01	2½	80S	11.59
88.90	3.05	3	10S	6.56
88.90	5.49	3	40S	11.47
88.90	7.62	3	80S	15.51
88.90	11.13²⁾	3	160	21.67
101.60	3.05	3½	10S	7.53
101.60	5.74	3½	40S	13.78
101.60	8.08	3½	80S	18.92
114.30	3.05	4	10S	8.50
114.30	6.02	4	40S	16.32
114.30	8.56	4	80S	22.67
114.30	13.49²⁾	4	160	34.05
141.30	6.55	5	40S	22.10
141.30	9.53	5	80S	31.44
141.30	15.88²⁾	5	160	49.87
168.28	3.4	6	10S	14.04
168.28	7.11	6	40S	28.69
168.28	10.97	6	80S	43.21
168.28	14.27	6	120	54.75
168.28	18.26²⁾	6	160	68.59
219.08	8.18	8	40S	43.20
219.08	12.7	8	80S	65.63
219.08	18.23	8	120	91.30
219.08	23.01²⁾	8	160	112.97

UNS S32205 Pipe Schedule Chart

1/8" IPS(.405" O.D.)	3 1/2" IPS( 4.000" O.D.)
Pipes, SCH 40, 80	Pipes, SCH 10, 40, 80, 160, XXH
1/4" IPS(.540" O.D.)	4" IPS(4.500" O.D.)
Pipes, SCH 10, 40, 80	Pipes, SCH 10, 40, 80, 160, XXH
3/8" IPS(.675" O.D.)	5" IPS( 5.563" O.D.)
Pipes, SCH 10, 40, 80	Pipes, SCH 10, 40, 80, 160, XXH
1/2" IPS(.840" O.D.)	6" IPS(6.625" O.D.)
Pipes, SCH 5, 10, 40, 80, 160, XXH	Pipes, SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050" O.D.)	8 ” IPS(8.625" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH	Pipes, SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′ O.D.)	10" IPS(10.750" O.D.)
Pipes, SCH 5, 10, 40, 80, 160, XXH	Pipes, SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660" O.D.)	12" IPS(12.750" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH	Pipes, SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900" O.D.)	14" IPS(14.000" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH	Pipes, SCH10 (.188), SCH40 (.375)
2" IPS(2.375" O.D.)	16" IPS(16.000" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH	2205 Pipes, SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875" O.D.)	18" IPS (18.000" O.D.)
2205 Pipes, SCH 10, 40, 80, 160, XXH	2205 Pipes, SCH-40 (.375)
3" IPS( 3.500" O.D.)	2205 Pipes, SCH 5, 10, 40, 80, 160, XXH

Duplex 2205 Pipe Weight Chart

NPS	Outside diameter		Wall thickness (WT)			weights	weight
NPS	Inch	MM	Inch	MM	Schedule	kg / M	Lb /feer
1/2	0.840	21	0.109	2.769	40 STD	1.268	0.851
1 1/4	1.660	42	0.140	3.556	40 STD	3.385	2.273
			0.147	3.734	80 STD	1.621	1.088
			0.154	3.912	80 STD	2.195	1.474
1	1.315	33	0.133	3.378	40 STD	2.501	1.679
3/4	1.050	27	0.113	2.870	40 STD	1.684	1.131
			0.179	4.547	80 STD	3.325	2.172
			0.191	4.851	80 STD	4.464	2.997
1 1/2	1.900	48	0.145	3.683	40 STD	4.048	2.718
			0.200	5.080	80 STD	5.409	3.361
2	2.375	60	0.154	3.912	40 STD	5.441	3.653
			0.218	5.537	80 STD	7.480	5.022
2 1/2	2.875	73	0.203	5.516	40 STD	8.629	5.793
			0.276	7.010	80 STD	11.411	7.661
3	3.500	89	0.216	5.486	40 STD	11.284	7.576
4	4.500	114	0.237	6.020		16.073	10.790
			0.337	8.560		22.318	14.983
6	6.625	168	0.188	4.775		19.252	12.924
			0.203	5.516		20.739	13.923
			0.219	5.563		22.318	14.983
			0.250	6.350		25.354	17.021
			0.300	7.620	80 STD	15.272	10.253
			0.280	7.112	40 STD	58.263	18.974
			0.312	7.925		31.334	21.036
			0.375	9.525		37.285	25.031
			0.432	10.973	80 XHY	42.561	28.573
			0.500	12.700		48.719	32.708
8	8.625	219	0.188	4.775		25.233	16.940
			0.219	5.563		29.286	19.661
			0.250	6.350	20	33.308	22.361
			0.277	7.036	30	36.786	24.696
			0.322	8.179	40	42.352	28.554
			0.375	9.525		49.216	33.041
			0.406	10.312	60	53.085	35.638
			0.203	5.156		27.198	18.259
			0.500	12.700	80 XHY	64.627	43.388
10	10.750	273	0.188	4.775		31.588	21.207
			0.219	5.563		36.689	24.631
			0.250	6.350	20	41.759	28.035
			0.307	7.798	30	51.002	34.240
			0.344	8.738		56.946	38.231
			0.365	9.271	40 STD	63.301	40.483
			0.438	11.125		71.852	48.238
			0.500	12.700	60 XHY	81.530	54.735
			0.594	15.088	80	95.969	64.429
12	12.750	324	0.188	4.775		37.570	25.222
			0.219	5.563		43.657	29.309
			0.250	6.350		49.713	33.375
			0.281	7.137		55.739	37.420
			0.312	7.925		61.735	41.445
			0.375	9.525		73.824	49.562
			0.406	10.312		79.727	53.525
			0.500	12.700		97.438	65.415
			0.562	14.275		108.966	73.154
14	14.000	356	0.188	4.775		41.308	27.732
			0.219	5.563		48.012	32.233
			0.250	6.350	20	54.685	36.713
			0.281	7.137		61.327	41.172
			0.312	7.925		67.939	45.611
			0.375	9.525	STD	81.281	54.568
			0.438	11.125	40	94.498	63.441
			0.500	12.700	XHY	107.381	72.090
			0.625	15.875		132.983	89.278
16”	16.000	406	0.188	4.775		47.290	21.748
			0.219	5.563		54.980	36.910
			0.250	6.350	10	62.639	42.053
			0.281	7.137		70.268	47.174
			0.312	7.925	20	77.866	52.275
			0.344	8.738		85.677	57.519
			0.375	9.525	30 STD	93.213	62.578
			0.438	11.125		108.433	72.797
			0.500	12.700	40 XHY	123.289	82.770
18	18.000	457	0.219	5.563		61.948	41.588
			0.250	6.350		70.593	47.393
			0.281	7.137		79.208	53.176
			0.312	7.925	20	87.792	58.939
			0.375	9.525	STD	105.144	70.588
			0.438	11.125	30	122.369	82.152
			0.500	12.700	XHY	139.198	93.450
			0.562	14.275	40	155.904	104.666
			0.625	15.875		172.754	115.978
20	20.000	508	0.250	6.350		78.547	52.733
			0.282	7.163		88.458	59.386
			0.312	7.925		97.719	65.604
			0.375	9.525	20 STD	117.075	78.598
			0.438	11.125		136.305	91.508
			0.500	12.700	30 XHY	155.106	104.130
			0.594	15.088	40	183.378	123.110
			0.625	15.875		192.640	129.328
			0.688	17.475		211.368	141.901
24	24.000	610	0.250	6.350		94.456	63.413
			0.281	7.137		106.029	71.183
			0.312	7.925		117.573	18.932
			0.375	9.525	20 STD	140.938	64.618
			0.438	11.125		164.176	110.219
			0.500	12.700	XHY	186.923	125.490
			0.625	15.875		232.410	156.028
			0.688	17.475	40	255.148	171.293
			0.750	19.050		277.401	186.233
30	30.000	762	0.250	6.350		118.318	79.433
			0.281	7.137		132.851	89.189
			0.312	7.925	10	147.353	98.925
			0.375	9.525	STD	176.731	118.648
			0.438	11.125		205.983	138.286
			0.500	12.700	20 XHY	234.647	157.530
			0.625	15.875	30	292.066	196.078
			0.688	17.475		320.817	215.380
			0.750	19.050		348.988	234.293
36	36.000	914	0.250	6.350		142.180	95.453
			0.281	7.137		159.672	107.196
			0.312	7.925	10	177.133	118.918
			0.375	9.525	STD	215.525	142.678
			0.438	11.125		247.790	166.353
			0.500	12.700	20 XHY	282.372	198.570
			0.625	15.875		351.723	236.128
			0.688	17.475		386.487	259.467
			0.750	19.050		420.576	282.353
42	42.000	1067	0.312	7.925		206.914	138.911
			0.375	9.525	STD	248.319	166.708
			0.500	12.700	XHY	33.097	221.610
			0.750	19.050		492.163	330.413
48	48.000	1219	0.375	9.525	STD	284.112	190.738
			0.438	11.125		331.404	222.487
			0.500	12.700	XHY	377.822	253.650
			0.750	19.050		563.750	378.473
			0.875	22.225		655.969	440.383

WERKSTOFF NR. 1.4462 Pipe Pressure Rating

Pipe Outer diameter (In.)	Wall Thickness Of Pipe (Inches)
	.028	.035	.049	.065	.083	.095	.109	.120
	Working Pressure (Psig)
1/8	7900	10100
1/4	3700	4800	7000	9500
5/16		3700	5400	7300
3/8		3100	4400	6100
1/2		2300	3200	4400
3/4			2200	3000	4000	4600
1				2200	2900	3400	3900	4300

Alloy 2205 pipe Price List

Pipe OD mm	Pipe WT mm	Sch	Price/Kg
13.72	1.65	10S	350
13.72	2.24	40S	353
13.72	3.02	80S	356
17.15	1.65	10S	359
17.15	2.31	40S	362
17.15	3.2	80S	365

Therefore, these Duplex 2205 Seamless Welded Pipes are widely used in applications such as marine applications and off the shore applications and in industries such as the oil industry. These Duplex S31803 Seamless Welded Pipes also are readily weldable and thus can be used in several applications.

Calico Metal exports their products to UAE, Dubai, Qatar, Dammam, Saudi Arabia, Iran, Kuwait, Bahrain, Abu Dhabi, & Iraq etc.
