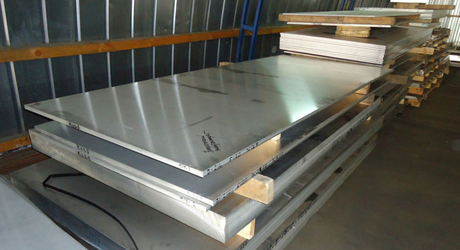

Aluminium 2017 Sheet & Plate Suppliers

Aluminium Alloy 2017 (2017 A) has high strength with excellent fatigue strength. Alloy 2017 also has very good machining characteristics. It is suitable for welding only by resistance welding. Alloy 2017 (2017 A) is used for various applications from high strength structural components, aircraft, machine construction, military equipment, rivets.

Aluminium/aluminum 2017 alloy is a heat treatable wrought alloy with intermediate strength. It is stronger than aluminium /aluminum 2011, but harder to machine. Workability is fair with ductility and formability better that aluminium / aluminum 2014. Arc and resistance weldability of this alloy are satisfactory while corrosion resistance is fair.

Advantages

Greater corrosion resistance
Higher tensile strength
Brilliant polish
Excellent machine strength
High creep resistance
High temperature strenght
Excellent mechanical properties

Standard Specification for Aluminium 2017 Sheets

ASTM B209 - Standard Specification for Aluminum and Aluminum-Alloy Sheets

ASTM B632 / B632M -Standard Specification for Aluminum-Alloy Rolled Tread Sheets

ASTM B947 - Standard Practice for Hot Rolling Mill Solution Heat Treatment for Aluminum Alloy Sheets

ASTM B548 - Standard Test Method for Ultrasonic Inspection of Aluminum-Alloy Sheets for Pressure Vessels

AMS 4001 - Aluminum Sheet 0.12Cu (1100-0), Annealed

AMS 4003 - Aluminum Alloy, Sheet, 0.12cu (1100-T6), Strain Hardened

AMS QQA250/1 - Aluminum 1100 Sheet

ASTM B209 Aluminum Alloy 2017 Sheet Equivalent Grade

Aluminium Grade	European Standard	BS	WNr	UNS	ISO	USA	GERMANY (DIN)	Canadian
2017	AW-AlCu4MgSi	AU4G	3.1325	A92017	AlCu4SiMg	AA2017	AlCuMg1	B26S

Aluminium Alloy 2017 Chemical Composition

Element	Content (%)
Aluminum, Al	91.5 - 95.5
Copper, Cu	3.5 - 4.5
Iron, Fe	0.7 max
Manganese, Mn	0.4 - 1
Magnesium, Mg	0.4 - 0.8
Silicon, Si	0.2 - 0.8
Zinc, Zn	0.25 max
Titanium, Ti	0.15 max
Chromium, Cr	0.1 max
Remainder (each)	0.05 max
Remainder (total)	0.15 max

Aluminium Alloy 2017 Mechanical Properties

Properties	Metric	Imperial
Tensile strength (annealed)	179 MPa	26000 psi
Yield strength (annealed)	69 MPa	10000 psi
Elongation (annealed)	22%	22%
Elastic modulus	72 GPa	10500 ksi
Shear strength (annealed)	124 MPa	18000 psi

Various Types Of ASTM B209 Aluminium 2017 Sheet & Plate

UNS-A92017-Plate

2017-T4 Aluminum Flat Sheet

2017 T3 Cutting Aluminium Sheet 5mm 10 Mm

Applications

Petroleum refineries,
Boilers
Heat exchangers
Condensers
Pipelines
Cooling towers
Steam exhausts
Electric generation plants
