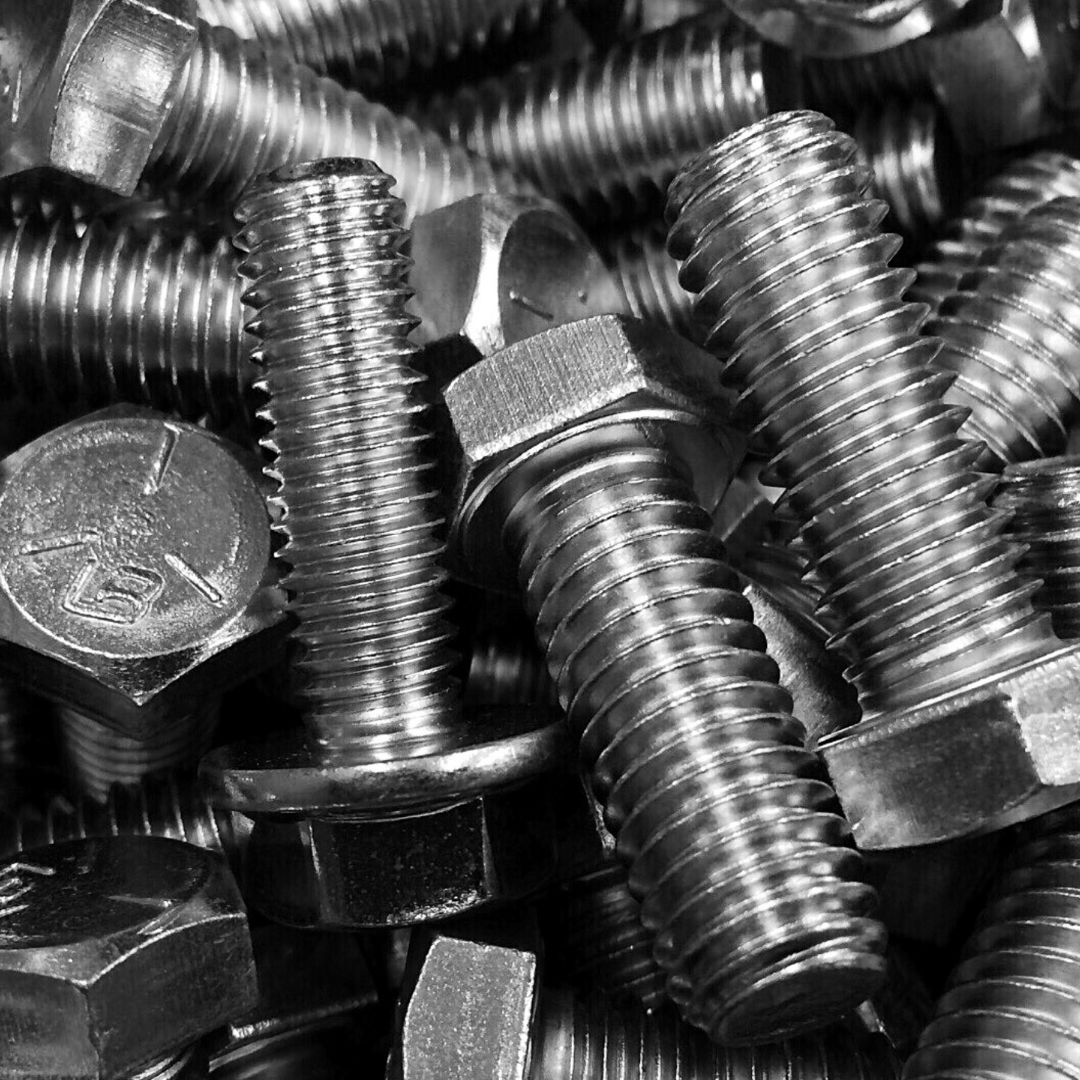

A4-80 Stainless Steel Bolt

A4-80 Stainless Steel Bolt, A4-80 Bolt, A4-80 Bolt Specification, ASTM A193 Stainless Steel a4-80 Hex Head Bolt, SS A4-80 Eye Bolt, UNS S31600 Allen Bolt, A4-80 Hex Bolt, A4-80 U Bolt, ASME SA193 SS a4-80 Flange Head Bolt, A4-80 Anchor Bolt, Stainless Steel A4-80 Stud Bolt.

A4-80 Bolt Specification

Specifications	ASTM A 193 / ASME SA 193
Standard	DIN, ISO ,JIS ,GB, IS, BS, ASTM and all International Standards
Size	M3 - M100 \| 3/6″ - 4″ \| Custom Sizes
Bolt Length	3 mm - 200 mm \| Custom Sizes
Dimensions	DIN 931, 933, 934, 7991, 976, 125, ASME B18.2.1, B18.3
Threads available	UNF, BSW, BSF, METRIC, UNC, or as required
Threads Configuration	ASME B1.1 2A/3A – 2B/3B Inch Unified Threads and B1.13M 6h-6G Metric Coarse Threads
Form	Hex, Threading, Square, Round as per Gauge Etc.
Head	Hex, Square, Round, Hex flange, Flat, T-head & Triangular etc.
Neck type	Hex, Square, Triangular, Oval & Knurled etc.
Surface Treatment	Passivation /plain
Others Factor	OEM, ODM, ±0.03MM tolerance
Manufacturing Process	Wire Drawing, Cold Heading, Insert tapping, Heat Treatment, Surface Plating, Inspection, Packing.
Packing	IN BULK: carton, pallet, Small Boxes or customer request
Surface Coating	Black Oxide, Cadmium, Galvanized, Teflon, Xylan, Zinc, Others Upon Request
Test Certificate	As per EN 10204 / 3.1 Manufacturer Test Certificate, PED 97/23/EC Certified, Merkblatt AD 2000 W2 Certified
Certification	Dual Certified As per ASTM & ASME Codes
Delivery time	Regular product : 7-15 days, Custom product : 2-4 weeks
Place of Origin	India

A4-80 Bolts Chemical Composition

Grade		C	Si	Mn	P	S	Cr	Mo	Ni	Cu	N
A4-80	Min	–	–	–	–	–	16	2	10.5	–	–
ISO	Max	0.08	1	2	0.045	0.03	18.5	3	14	1	–
A4-80	Min	–	–	–	–	–	16	2	11.5	–	0.12
ISO²	Max	0.03	1	2	0.045	0.03	18.5	3	14	1	0.22
316	Min	–	–	–	0	–	16	2	10		–
	Max	0.08	0.75	2	0.045	0.03	18	3	14		0.1
316L	Min	–	–	–	–	–	16	2	10		–
	Max	0.03	0.75	2	0.045	0.03	18	3	14		0.1
316H	Min	0.04	0	0.04	–	–	16	2	10		–
	Max	0.1	0.75	0.1	0.045	0.03	18	3	14		–

A4-80 Bolts Mechanical properties

Grade	Tensile Strength (MPa) min	Yield Strength 0.2% Proof (MPa) min	Elong (% in 50mm) min	Hardness Rockwell B (HR B) max	Brinell (HB) max
A4-80	800	600	30	Not required	Not required

Equivalent Grades of Stainless Steel A4-80 Bolts

British (BS)	French	German (EN)	Italian	Japanese (SUS)	Swedish	USA (SS)
316S31316S33	Z6CND17.11	1.44011.4436	X8CrNiMo 17 13	SUS316	14 23 4314 23 47	SS 316 Bolts

Applications of A4-80 Bolts

Petroleum refineries

Boilers

Heat exchangers

Condensers

aluminium-alloy-7075-t6511-round-bars-billet

Pipelines

Cooling towers

Calico Metal Alloys LLP exports their products to countries like UAE, Bahrain, Italy, Indonesia, Malaysia, United States, Mexico, Chine, Brazil, Peru, Nigeria, Kuwait, Jordan, Dubai, Thailand (Bangkok), Venezuela, Iran, Germany, UK, Canada, Russia, Turkey, Australia, New Zealand, Sri Lanka, Vietnam, South Africa, Kazakhstan & Saudi Arabia.
