ASTM A790/ASME SA 790 UNS S31803 pipe

Duplex S31803 Pipe, Duplex SA 790 S31803 Pipes, Duplex Steel S31803 Pipes Stockist, Duplex Steel UNS S31803 Pipes.

ASTM A790 UNS S31803 pipe Get Quote's

ASTM A790 UNS S31803 pipe is an imperishable alternative with excellent flexibility. These pipes are considered one of the most ductile and strong pipes in the metal industry. We at Calico Metal Alloys provide these pipes at a very nominal price, and we manufacture these products using high superior quality raw material.

Duplex S31803 pipes are highly used for commercial and industrial purposes, and these pipes are used for transferring harmful chemicals, fluids, and gases from one place to another. ASTM A790/ASME SA 790 UNS S31803 pipes are enriched with great weldability and strength. The grade provides excellent flexibility and durability.

Chemical composition:

The chemical composition of ASME SA790 UNS S31803 pipes includes a high amount of chromium, nickel, and molybdenum. These elements are known for providing strength and malleability to the grade. ASTM A790/ASME SA 790 UNS S31803 grade also includes elements like silicon, sulfur, manganese, nitrogen, phosphorus, etc., to provide stability to the grade.


Pipes are generally used for transferring and diverting the flow. These pipes are available in various types and grades. Duplex Steel UNS S31803 pipes have a remarkable ability to withstand high heat pressure and bad weather conditions. These pipes are highly recommended in most industries because of their extraordinary capabilities. The grade provides excellent resistance from corrosion, crevice corrosion, and stress cracking, and it also protects from rusting, reduction, and erosion.

ASTM A790 S31803 Duplex Steel Pipe, Duplex Steel S31803 Pipes at Best Price, ASME SA 790 Duplex S31803 Pipes, Duplex S31803 Industrial Tube Exporter in India.

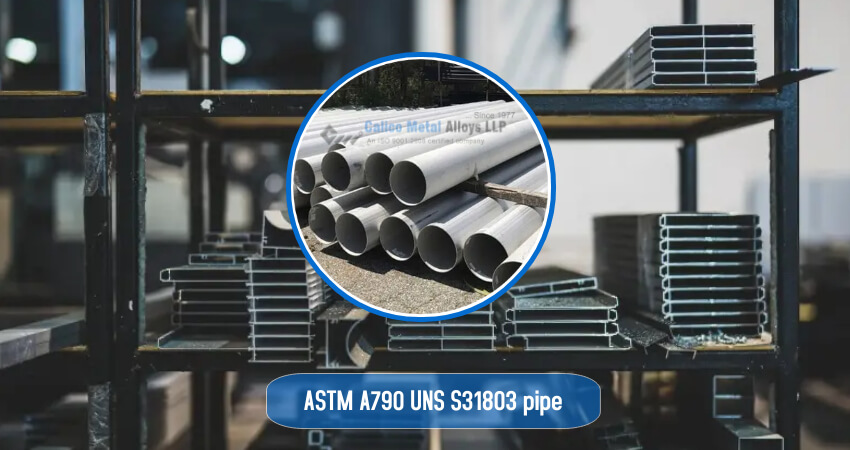

ASTM A790 UNS S31803 Pipe

Characteristics

  • High resistance to chloride stress corrosion cracking
  • Resistance to chloride pitting and crevice corrosion
  • Good general corrosion resistance
  • Good sulfide stress corrosion resistance
  • High Strength
  • Good weldability and workability

Applications

  • Chemical process vessels, piping and heat exchangers
  • Pulp mill digesters, bleach washers, chip pre-steaming vessels
  • Food processing equipment
  • Oil field piping and heat exchangers
  • Flue gas desulfurization equipment

Also see

Standard Specification For Duplex Steel S31803 Pipe


Specification Details
ASTM Specification ASTM A790, ASME SA790
Manufacturing Type Seamless / ERW / Welded / Fabricated / CDW / CDS / DOM / CEW / 100% X Ray Welded
Thickness Range SCH 5, SCH10, SCH 40, SCH 80, SCH 80S, SCH 160, SCH XXH, SCH XXS, SCH XS
Standard SUS, JIS, AISI, ASTM, GB, DIN, EN
Additional Services Destructive and Non Destructive testing, Threading, Ultrasonic Testing, Beveling, Cutting, Draw & Expansion as per required Size & Length
Pipe End Type Plain End, Beveled End, Treaded S31803 Stainless Steel Pipe
Marking Details Manufacturer’s Name or Custom Logo - on request, Heat Number, Method of Manufacturing (Seamless / Welded), Material Grade, Schedule or Wall Thickness, Specification, Nominal Size
Inspection & Testing Destructive and Non-Destructive Testing
Surface Finish Polished, AP (Annealed & Pickled), BA (Bright & Annealed), MF, NO.1, NO.4, 2B, BA, HL, 8K, Mirror finish, etc
Gauge (Swg & Bwg) 10, 12, 14, 16, 18, 20 Swg.
Temperature Range -50 to 300°C (Depends on material grade)
Pressure Rating Up to 6000 PSI (Depends on size and schedule)
Manufacturing Process Hot finished, cold finished, heat treatment
Test Certificate Provisions Manufacturer Test Certificate, EN 10204 3.1 and EN 10204 3.2 Material Test Certificates (MTC), Laboratory Test Certificate from Govt. Approved Lab, EN 10204/3.1B, Raw Materials Certificate, Third Party Inspection Report, Fumigation Certificates, etc.
Packaging Bundled, Wooden Boxes, Plastic Bags, or as per client's requirements
Applications Dairy Pipe, Oil Pipe, Gas Pipe, Fluid Pipe, Boiler Pipe for Chemical Industry

Types of Duplex S31803 Pipe available :

S31803 Stainless Steel erw pipe
S31803 Stainless Steel erw pipe
DSS S31803 welded pipe
DSS S31803 welded pipe
ASTM A790 Duplex S31803 custom pipe
ASTM A790 Duplex S31803 custom pipe
Alloy S31803 seamless pipe
Alloy S31803 seamless pipe
ASTM A240 Duplex Steel Square Pipe
ASTM A790 Duplex Steel Square Pipe
UNS S31803 cold rolled pipe
UNS S31803 cold rolled pipe
Duplex S31803 cold drawn pipe
Duplex S31803 cold drawn pipe
Din 1.4462 large diameter pipe
Din 1.4462 large diameter pipe
UNS S31803 electropolished pipe
UNS S31803 electropolished pipe
S31803 thick wall pipe
S31803 thick wall pipe
Duplex steel colour coated pipe
Duplex steel colour coated pipe
ASME SA790 Duplex S31803 hot rolled pipe
ASME SA790 Duplex S31803 hot rolled pipe

Chemical Composition

C N P Si Mn Mo Fe Cr S Ni
1.0 0.03 0.02 2.0 3.0 - 3.5 22.0 - 23.0 0.03 4.5 - 6.5 0.14 - 0.2 Bal

Mechanical Properties

Density Melting Point Yield Strength (0.2%Offset) Tensile Strength Elongation
7.8 g/cm3 1350 °C (2460 °F) Psi - 80000 , MPa - 550 Psi - 116000 , MPa - 800 15 %

Physical Properties

Grade Density
(kg/m3)		 Elastic
Modulus(GPa)		 Mean Co-eff of Thermal
Expansion (μm/m/°C)		 Thermal
Conductivity (W/m.K)		 Specific
Heat
0-100°C( J/kg.K)		 Electrical
Resistivity
(nΩ.m)
0-100°C 0-315°C 0-538°C at 100°C at 500°C
UNS S31803 782 190 13.7 14.2 – 19 – 418 850

Size Chart

OD
mm		 WT
mm		 in. Sch Kg/m
13.72 2.24 1/4 40S 0.64
13.72 3.02 1/4 80S 0.81
13.72 1.65 1/4 10S 0.50
17.15 1.65 3/8 10S 0.64
17.15 2.31 3/8 40S 0.86
17.15 3.20 3/8 80S 1.12
21.34 2.11 1/2 10S 1.02
21.34 2.77 1/2 40S 1.29
21.34 3.73 1/2 80S 1.65
26.67 2.11 3/4 10S 1.30
26.67 2.87 3/4 40S 1.71
26.67 3.91 3/4 80S 2.23
33.40 2.77 1 10S 2.13
33.40 3.38 1 40S 2.54
33.40 4.55 1 80S 3.29
33.40 6.352) 1 160 4.30
42.16 2.77 1¼ 10S 2.73
42.16 3.56 1¼ 40S 3.44
42.16 4.85 1¼ 80S 4.53
42.16 6.352) 1¼ 160 5.69
48.26 2.77 1½ 10S 3.16
48.26 3.68 1½ 40S 4.11
48.26 5.08 1½ 80S 5.49
60.33 2.77 2 10S 3.99
60.33 3.91 2 40S 5.52
60.33 5.54 2 80S 7.60
60.33 8.742) 2 160 11.29
73.03 3.05 2½ 10S 5.35
73.03 5.16 2½ 40S 8.77
73.03 7.01 2½ 80S 11.59
88.90 5.49 3 40S 11.47
88.90 7.62 3 80S 15.51
88.90 11.132) 3 160 21.67
88.90 3.05 3 10S 6.56
101.60 5.74 3½ 40S 13.78
101.60 3.05 3½ 10S 7.53
101.60 8.08 3½ 80S 18.92
114.30 3.05 4 10S 8.50
114.30 6.02 4 40S 16.32
114.30 8.56 4 80S 22.67
114.30 13.492) 4 160 34.05
141.30 6.55 5 40S 22.10
141.30 9.53 5 80S 31.44
141.30 15.882) 5 160 49.87
168.28 3.4 6 10S 14.04
168.28 7.11 6 40S 28.69
168.28 10.97 6 80S 43.21
168.28 14.27 6 120 54.75
168.28 18.262) 6 160 68.59
219.08 8.18 8 40S 43.20
219.08 12.7 8 80S 65.63
219.08 18.23 8 120 91.30
219.08 23.012) 8 160 112.97

UNS S31803 Pipe Schedule Chart

1/8" IPS(.405" O.D.) 3 1/2" IPS( 4.000" O.D.)
Pipes, SCH 40, 80 Pipes, SCH 10, 40, 80, 160, XXH
1/4" IPS(.540" O.D.) 4" IPS(4.500" O.D.)
Pipes, SCH 10, 40, 80 Pipes, SCH 10, 40, 80, 160, XXH
3/8" IPS(.675" O.D.) 5" IPS( 5.563" O.D.)
Pipes, SCH 10, 40, 80 Pipes, SCH 10, 40, 80, 160, XXH
1/2" IPS(.840" O.D.) 6" IPS(6.625" O.D.)
Pipes, SCH 5, 10, 40, 80, 160, XXH Pipes, SCH 5, 10, 40, 80, 120, 160, XXH
3/4" IPS(1.050" O.D.) 8 ” IPS(8.625" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH Pipes, SCH 5, 10, 40, 80, 120, 160, XXH
1" IPS:(1.315′ O.D.) 10" IPS(10.750" O.D.)
Pipes, SCH 5, 10, 40, 80, 160, XXH Pipes, SCH 10, 20, 40, 80 (.500), TRUE 80(.500)
1-1/4" IPS(1.660" O.D.) 12" IPS(12.750" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH Pipes, SCH 10, 20, 40(.375), TRUE40(.406), SCH80(.500)
1-1/2" IPS(1.900" O.D.) 14" IPS(14.000" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH Pipes, SCH10 (.188), SCH40 (.375)
2" IPS(2.375" O.D.) 16" IPS(16.000" O.D.)
Pipes, SCH 10, 40, 80, 160, XXH S31803 Pipes, SCH10(.188), SCH40(.375)
2 1/2" IPS(2.875" O.D.) 18" IPS (18.000" O.D.)
S31803 Pipes, SCH 10, 40, 80, 160, XXH S31803 Pipes, SCH-40 (.375)
3" IPS( 3.500" O.D.) S31803 Pipes, SCH 5, 10, 40, 80, 160, XXH

Duplex S31803 Pipe Weight Chart

NPS Outside diameter Wall thickness (WT)   weights weight
Inch MM Inch MM Schedule kg / M Lb /feer
1/2 0.840 21 0.109 2.769 40 STD 1.268 0.851
1 1/4 1.660 42 0.140 3.556 40 STD 3.385 2.273
      0.147 3.734 80 STD 1.621 1.088
      0.154 3.912 80 STD 2.195 1.474
1 1.315 33 0.133 3.378 40 STD 2.501 1.679
3/4 1.050 27 0.113 2.870 40 STD 1.684 1.131
      0.179 4.547 80 STD 3.325 2.172
      0.191 4.851 80 STD 4.464 2.997
1 1/2 1.900 48 0.145 3.683 40 STD 4.048 2.718
      0.200 5.080 80 STD 5.409 3.361
2 2.375 60 0.154 3.912 40 STD 5.441 3.653
      0.218 5.537 80 STD 7.480 5.022
2 1/2 2.875 73 0.203 5.516 40 STD 8.629 5.793
      0.276 7.010 80 STD 11.411 7.661
3 3.500 89 0.216 5.486 40 STD 11.284 7.576
4 4.500 114 0.237 6.020   16.073 10.790
      0.337 8.560   22.318 14.983
6 6.625 168 0.188 4.775   19.252 12.924
      0.203 5.516   20.739 13.923
      0.219 5.563   22.318 14.983
      0.250 6.350   25.354 17.021
      0.300 7.620 80 STD 15.272 10.253
      0.280 7.112 40 STD 58.263 18.974
      0.312 7.925   31.334 21.036
      0.375 9.525   37.285 25.031
      0.432 10.973 80 XHY 42.561 28.573
      0.500 12.700   48.719 32.708
8 8.625 219 0.188 4.775   25.233 16.940
      0.219 5.563   29.286 19.661
      0.250 6.350 20 33.308 22.361
      0.277 7.036 30 36.786 24.696
      0.322 8.179 40 42.352 28.554
      0.375 9.525   49.216 33.041
      0.406 10.312 60 53.085 35.638
      0.203 5.156   27.198 18.259
      0.500 12.700 80 XHY 64.627 43.388
10 10.750 273 0.188 4.775   31.588 21.207
      0.219 5.563   36.689 24.631
      0.250 6.350 20 41.759 28.035
      0.307 7.798 30 51.002 34.240
      0.344 8.738   56.946 38.231
      0.365 9.271 40 STD 63.301 40.483
      0.438 11.125   71.852 48.238
      0.500 12.700 60 XHY 81.530 54.735
      0.594 15.088 80 95.969 64.429
12 12.750 324 0.188 4.775   37.570 25.222
      0.219 5.563   43.657 29.309
      0.250 6.350   49.713 33.375
      0.281 7.137   55.739 37.420
      0.312 7.925   61.735 41.445
      0.375 9.525   73.824 49.562
      0.406 10.312   79.727 53.525
      0.500 12.700   97.438 65.415
      0.562 14.275   108.966 73.154
14 14.000 356 0.188 4.775   41.308 27.732
      0.219 5.563   48.012 32.233
      0.250 6.350 20 54.685 36.713
      0.281 7.137   61.327 41.172
      0.312 7.925   67.939 45.611
      0.375 9.525 STD 81.281 54.568
      0.438 11.125 40 94.498 63.441
      0.500 12.700 XHY 107.381 72.090
      0.625 15.875   132.983 89.278
16” 16.000 406 0.188 4.775   47.290 21.748
      0.219 5.563   54.980 36.910
      0.250 6.350 10 62.639 42.053
      0.281 7.137   70.268 47.174
      0.312 7.925 20 77.866 52.275
      0.344 8.738   85.677 57.519
      0.375 9.525 30 STD 93.213 62.578
      0.438 11.125   108.433 72.797
      0.500 12.700 40 XHY 123.289 82.770
18 18.000 457 0.219 5.563   61.948 41.588
      0.250 6.350   70.593 47.393
      0.281 7.137   79.208 53.176
      0.312 7.925 20 87.792 58.939
      0.375 9.525 STD 105.144 70.588
      0.438 11.125 30 122.369 82.152
      0.500 12.700 XHY 139.198 93.450
      0.562 14.275 40 155.904 104.666
      0.625 15.875   172.754 115.978
20 20.000 508 0.250 6.350   78.547 52.733
      0.282 7.163   88.458 59.386
      0.312 7.925   97.719 65.604
      0.375 9.525 20 STD 117.075 78.598
      0.438 11.125   136.305 91.508
      0.500 12.700 30 XHY 155.106 104.130
      0.594 15.088 40 183.378 123.110
      0.625 15.875   192.640 129.328
      0.688 17.475   211.368 141.901
24 24.000 610 0.250 6.350   94.456 63.413
      0.281 7.137   106.029 71.183
      0.312 7.925   117.573 18.932
      0.375 9.525 20 STD 140.938 64.618
      0.438 11.125   164.176 110.219
      0.500 12.700 XHY 186.923 125.490
      0.625 15.875   232.410 156.028
      0.688 17.475 40 255.148 171.293
      0.750 19.050   277.401 186.233
30 30.000 762 0.250 6.350   118.318 79.433
      0.281 7.137   132.851 89.189
      0.312 7.925 10 147.353 98.925
      0.375 9.525 STD 176.731 118.648
      0.438 11.125   205.983 138.286
      0.500 12.700 20 XHY 234.647 157.530
      0.625 15.875 30 292.066 196.078
      0.688 17.475   320.817 215.380
      0.750 19.050   348.988 234.293
36 36.000 914 0.250 6.350   142.180 95.453
      0.281 7.137   159.672 107.196
      0.312 7.925 10 177.133 118.918
      0.375 9.525 STD 215.525 142.678
      0.438 11.125   247.790 166.353
      0.500 12.700 20 XHY 282.372 198.570
      0.625 15.875   351.723 236.128
      0.688 17.475   386.487 259.467
      0.750 19.050   420.576 282.353
42 42.000 1067 0.312 7.925   206.914 138.911
      0.375 9.525 STD 248.319 166.708
      0.500 12.700 XHY 33.097 221.610
      0.750 19.050   492.163 330.413
48 48.000 1219 0.375 9.525 STD 284.112 190.738
      0.438 11.125   331.404 222.487
      0.500 12.700 XHY 377.822 253.650
      0.750 19.050   563.750 378.473
      0.875 22.225   655.969 440.383

WERKSTOFF NR. 1.4462 Pipe Pressure Rating

Pipe Outer diameter
(In.)		 Wall Thickness Of Pipe (Inches)
.028 .035 .049 .065 .083 .095 .109 .120
Working Pressure (Psig)
1/8 7900 10100
1/4 3700 4800 7000 9500
5/16   3700 5400 7300
3/8   3100 4400 6100
1/2   2300 3200 4400
3/4     2200 3000 4000 4600
1       2200 2900 3400 3900 4300

Alloy S31803 pipe Price List

Pipe OD
mm		 Pipe WT
mm		 Sch Price/Kg
13.72 1.65 10S 350
13.72 2.24 40S 353
13.72 3.02 80S 356
17.15 1.65 10S 359
17.15 2.31 40S 362
17.15 3.2 80S 365

We Export:

Calico Metal Ind Pvt Ltd exports their products to Mumbai, Delhi, Bangalore, Ahmedabad, Chennai, Kolkata, Surat, Pune, Hyderabad, Lucknow, Bhopal, Jaipur, Visakhapatnam, Patna, Vadodara, Nagpur, Indore, Thane, Ranchi, Coimbatore, Aurangabad, Tamilnadu, Ludhiana, Dhanbad, Lucknow, Howrah, Raipur, Chandigarh, Guwahati, Bhubaneswar, Vietnam, South Africa, Kazakhstan & Saudi Arabia.

Related Search Term

ASTM A790 UNS S31803 Pipe retailer in Vadodara, Pipe distributor in Qatar, Pipe manufacturer in Hyderabad, Pipe stockiest in Pune, ASME SA790 UNS S31803 Pipe stockiest in Kerala, ASME SA790 UNS S31803 Pipe wholesaler in Salem, Duplex 1.4462 Pipe stockiest in Kerala, Pipe retailer in Mumbai, UNS S31803 Pipe wholesaler in Nagpur, ASTM A790 UNS S31803 Pipe distributor in Pune, ASTM A790 UNS S31803 Pipe wholesaler in Nagpur, Pipe exporter in Gujarat, Pipe exporter in Vietnam, ASME SA790 UNS S31803 Pipe trader in Pune, Pipe retailer in Raipur, UNS S31803 Pipe wholesaler in Saudi Arabia, ASTM A790 UNS S31803 Pipe trader in Mumbai, UNS S31803 Pipe manufacturer in Gujarat, Duplex UNS S31803 Pipe dealer in Oman, SAF 2205 Pipe retailer in Kerala, ASME SA790 UNS S31803 Pipe trader in Malaysia, UNS S31803 Pipe distributor in India.

Duplex Steel Materials
Duplex Steel UNS S31803
Duplex Steel UNS S32205
Super Duplex UNS S32750
Duplex Steel 2205
Super Duplex UNS S32760
Duplex Steel 2202
Duplex Steel 2304
